Shandong Heze Sanyi Biological Engineering Co., Ltd. is one of the leading manufacturers and suppliers of livestock and poultry waste disposal integrated machine in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to buy durable livestock and poultry waste disposal integrated machine from our factory. Customized orders are welcome.
Product Overview

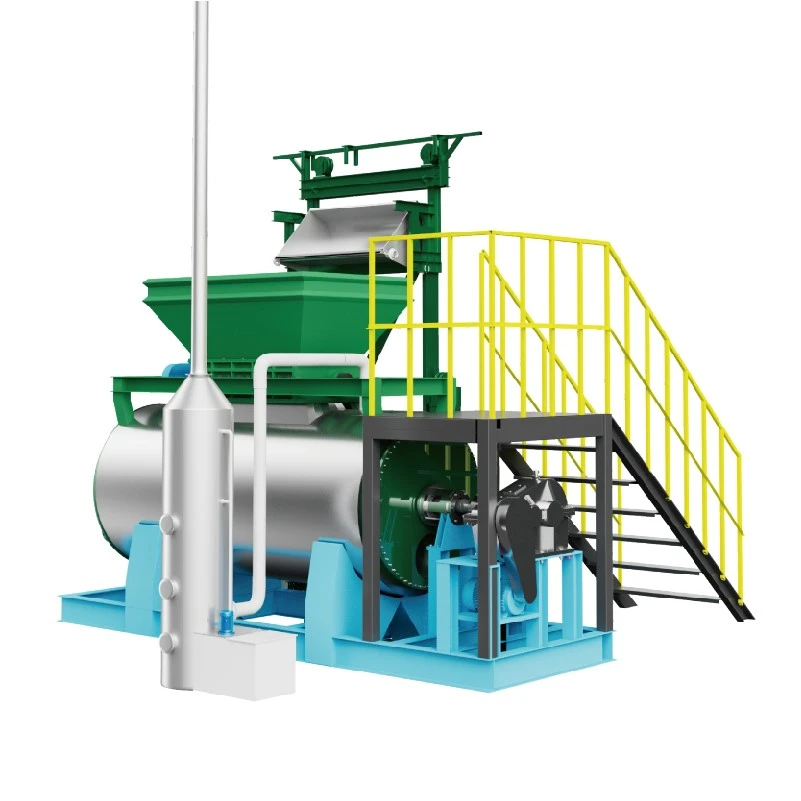

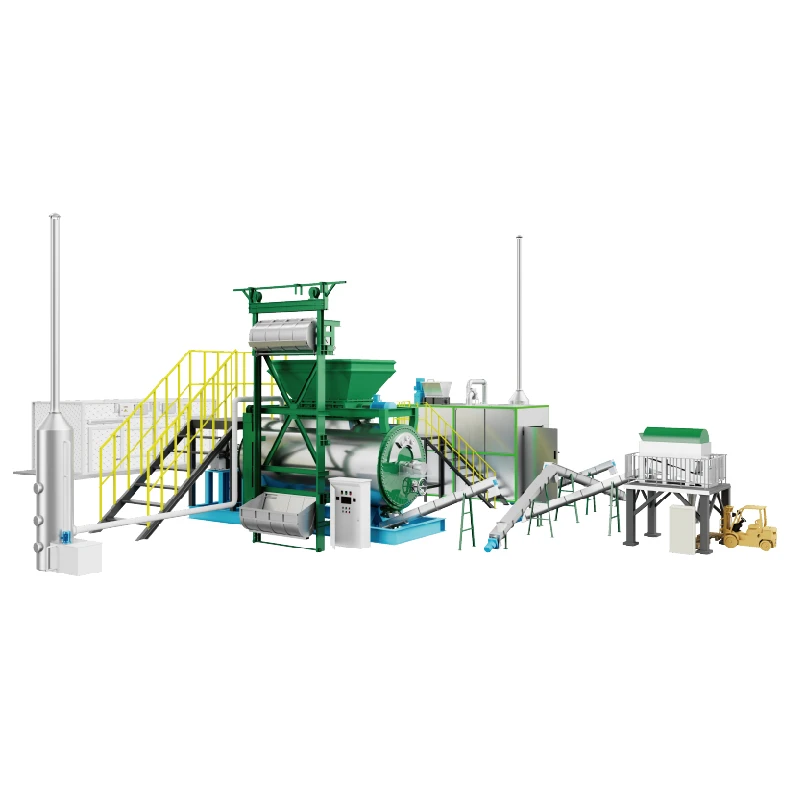

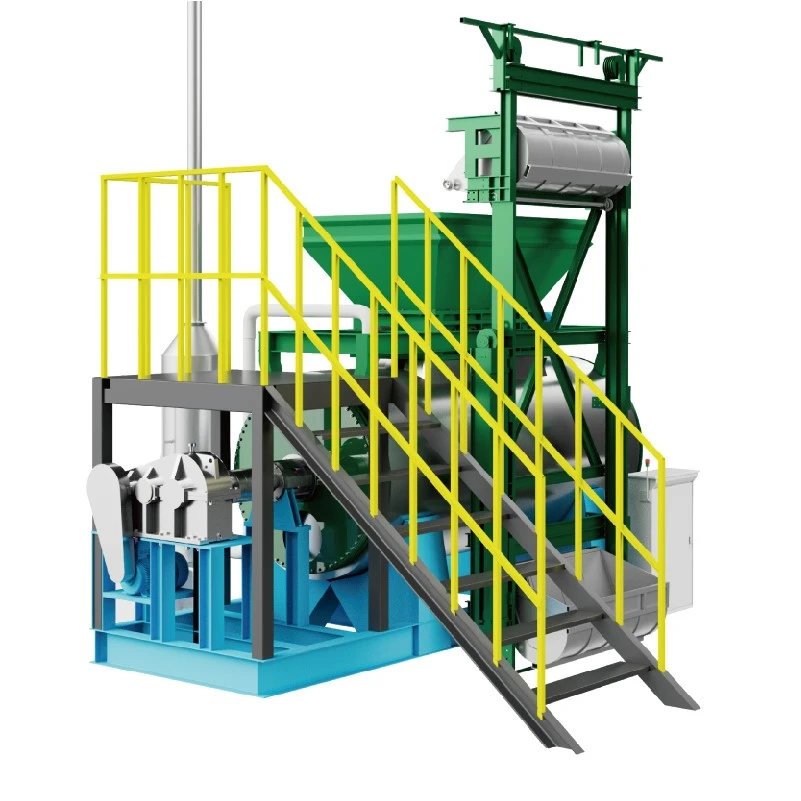

The livestock and poultry waste treatment integrated machine is comprehensive disposal equipment for all types of breeding waste, processing targets include dead livestock carcasses, slaughter offal, feathers and all breeding solid by-products. Different from single-function dead animal treatment machines, it realizes one-stop disposal of full-chain livestock breeding waste. Adopting integrated high-temperature negative pressure dry rendering process, it integrates crushing, high-temperature sterilization and negative pressure dehydration drying into one single unit, suitable for daily continuous organic waste generated by farms, covering emergency batch disposal of dead livestock and regular treatment of slaughter leftovers. With compact modular integrated layout, the equipment completes harmless degradation of waste via standardized high-temperature negative pressure technology and simultaneously realizes resource regeneration, producing organic fertilizer raw materials and industrial grease. It solves farm pain points including waste random stacking, odor pollution and epidemic transmission. Multiple capacity models cover single batch 200kg to 2000kg to match breeding parks of various scales.
Core Supporting Accessories
Multi-functional heavy-duty crushing unit: Suitable for crushing whole livestock, large offal and mixed feather materials, equipped with wear-resistant alloy cutters and large-diameter feeding bin;
Integrated rendering & drying main liner: 12mm thickened stainless steel pressure chamber with high temperature and corrosion resistance for long service life;
Circulating heat conduction oil heating system: Closed oil circulation delivers uniform heat, suitable for heat exchange of complex mixed waste materials;
Complete negative pressure waste gas treatment assembly: Vacuum pump, induced draft fan and deodorizing purification device collect and uniformly treat waste gas without external pollution;
PLC multi-mode intelligent control cabinet: Two exclusive processing programs for dead livestock and slaughter by-products with one-click parameter switching;
High-torque stirring conveying shaft: Widened and thickened spiral blades flip hard mixed materials such as bones and feathers to prevent wall adhesion and material agglomeration;
Automatic feeding & discharging power assembly: Independent motor drive with closed conveying to reduce manual waste contact.
Complete Process Flow
- Mixed waste crushing pre-treatment: All livestock waste is fed into shredder, crushed into uniform blocks and automatically conveyed to rendering chamber;
- High-temperature negative pressure sterilization degradation: Chamber heats to 130℃ with continuous stirring. Combined high temperature and negative pressure decompose waste tissue and thoroughly inactivate all pathogenic microorganisms;
- Deep negative pressure dehydration drying: Chamber maintains negative pressure ≤ -0.06MPa, materials are dried at constant 100–140℃ for 4–6 hours to rapidly remove internal moisture;
- Resource separation output: Dried materials are automatically discharged and separated into high-protein meat bone meal (organic fertilizer raw material) and industrial grease to realize recycling of breeding waste.
Core Process Advantages
Compatible with all categories of livestock waste, simultaneously processing dead livestock, feathers, offal and slaughter scraps for multi-purpose single machine;
Integrates full procedures of crushing, sterilization and drying, completing full waste disposal with one unit to cut multi-equipment procurement costs;
Full closed negative pressure process with centralized waste gas purification, eliminating farm odor nuisance and secondary soil & water pollution;
Dual-mode PLC intelligent program automatically matches temperature and drying duration for different waste types to guarantee stable treatment effect;
High-torque stirring structure adapts to hard materials like bones and feathers, avoiding bin adhesion and material blockage;
Outstanding waste volume and weight reduction drastically cuts external transportation and landfill costs, while by-products generate extra breeding income.
Application Scenarios
Large comprehensive breeding parks, large-scale slaughtering and processing plants, centralized livestock waste collection & treatment centers, large integrated planting & breeding farms.
