Shandong Heze Sanyi Biological Engineering Co., Ltd. is one of the leading manufacturers and suppliers of livestock and poultry harmless disposal integrated machine in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to buy durable livestock and poultry harmless disposal integrated machine from our factory. Customized orders are welcome.
Product Overview

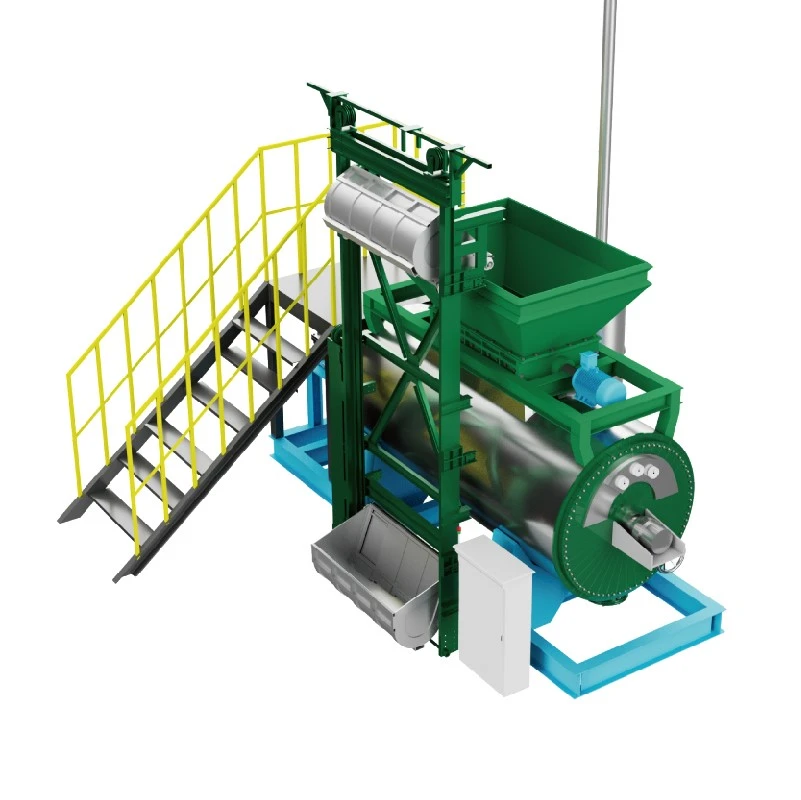

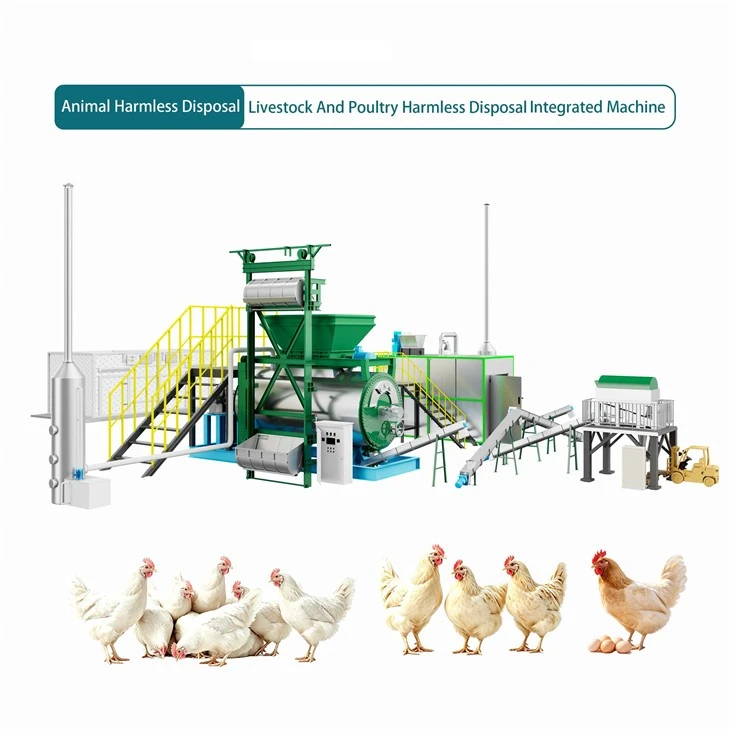

This livestock and poultry harmless disposal integrated machine is an all-in-one complete set of equipment for small stations, integrating crushing, high-temperature rendering and negative pressure drying units. It is customized for small-batch disposal of dead livestock and poultry in medium & small farms and village-level quarantine stations. Adopting compact integrated structure without separate equipment assembly, it occupies small space and adopts mature Sanyi high-temperature negative pressure rendering & drying core technology, fully complying with national industry standards for livestock harmless treatment. The whole machine operates in fully closed negative pressure environment. 130℃ high temperature completely inactivates bacteria, viruses and parasite eggs, preventing odor and pathogenic aerosol leakage, realizing safe, pollution-free on-site harmless disposal. It simultaneously completes material volume reduction and resource conversion, balancing environmental benefits and income from recycled raw materials. Models cover single batch processing capacity from 200kg to 2000kg, meeting daily regular disposal demands of individual farmers and medium-small breeding bases.
Core Supporting Accessories
Pre-shredding assembly: High-power spiral shredder (15kw crushing motor standard for 2000 model) with high-strength wear-resistant alloy blades and automatic feeding & blanking structure, eliminating manual separation of large carcasses;
Rendering inner tank: 12mm thickened stainless steel liner resistant to acid and alkali corrosion, matched with aluminum silicate insulation layer and stainless steel outer cladding to lock heat and cut energy consumption;
PLC intelligent temperature control cabinet: Automatic program logic, real-time monitoring of temperature, negative pressure and stirring speed, supporting one-key start-stop and automatic fault alarm;
Closed heat conduction oil heating system: Circulating heat medium ensures uniform heating without local scorching, lower energy consumption than direct heating mode;
Negative pressure vacuum unit: Vortex vacuum pump stably maintains negative pressure ≤ -0.06MPa, matched with induced draft, dust removal and deodorization components;
Stirring & conveying assembly: Integrated spiral stirring shaft with bionic curved blades to flip materials evenly for consistent heating;
Automatic feeding & discharging power unit: Independent drive motors for automatic material loading and unloading, minimizing manual contact with pathogenic materials.

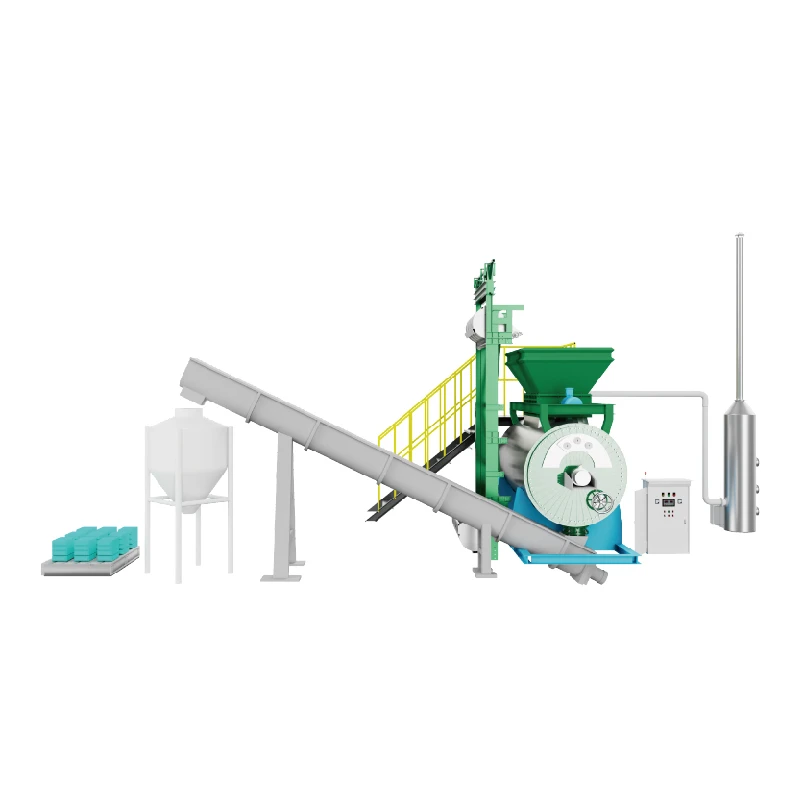

Complete Process Flow
- Pre-treatment crushing: Dead livestock and poultry carcasses are fed into shredder, quickly crushed into blocks and automatically fall into rendering chamber;
- High-temperature rendering sterilization: PLC accurately heats chamber to 130℃ with continuous stirring. Combined high temperature, pressure and negative pressure thoroughly eliminate all pathogenic microorganisms;
- Negative pressure drying: Vacuum pump forms negative pressure chamber, materials are dried at constant 100–140℃ for 4–6 hours. Negative pressure lowers water boiling point to accelerate evaporation and shorten drying cycle;
- Discharging & resource separation: Dried materials are automatically discharged and separated into meat and bone meal (50%~55% protein, raw material for organic fertilizer) and industrial grease (raw material for biodiesel).
Core Process Advantages
Integrated all-in-one design completes crushing, sterilization and drying in single unit, cutting equipment procurement and civil construction costs;
Fully closed negative pressure closed-loop treatment prevents odor leakage and blocks epidemic transmission with high biosafety level;
Indirect heat conduction oil heating with precise temperature control fully preserves protein and trace elements of materials for high-value by-products;
PLC automatic unattended operation with low operation threshold, only simple feeding required per batch to reduce manual exposure risks;
Gradient capacity models from 200kg to 2 tons per batch, flexibly matching breeding entities of different scales;
Outstanding volume reduction effect greatly cuts solid waste transportation pressure.
Application Scenarios
Medium and small pig, chicken, duck, cattle and sheep farms, township animal quarantine supervision stations, small slaughterhouses, village-level centralized harmless treatment stations.
