Shandong Heze Sanyi Biological Engineering Co., Ltd. is one of the leading manufacturers and suppliers of twin shaft paddle mixer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to buy durable twin shaft paddle mixer from our factory. Customized orders are welcome.
Product Overview

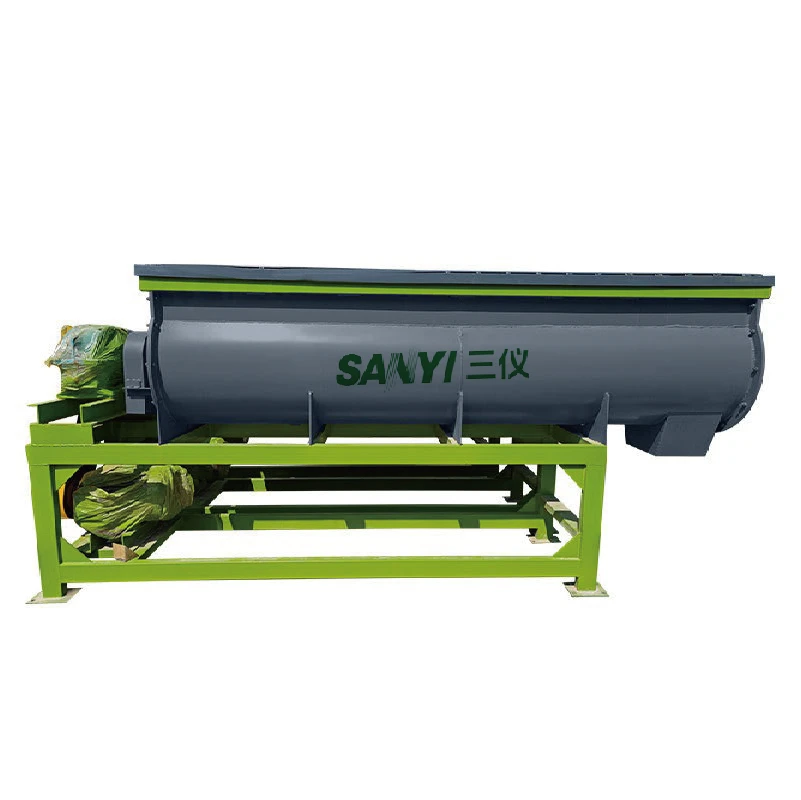

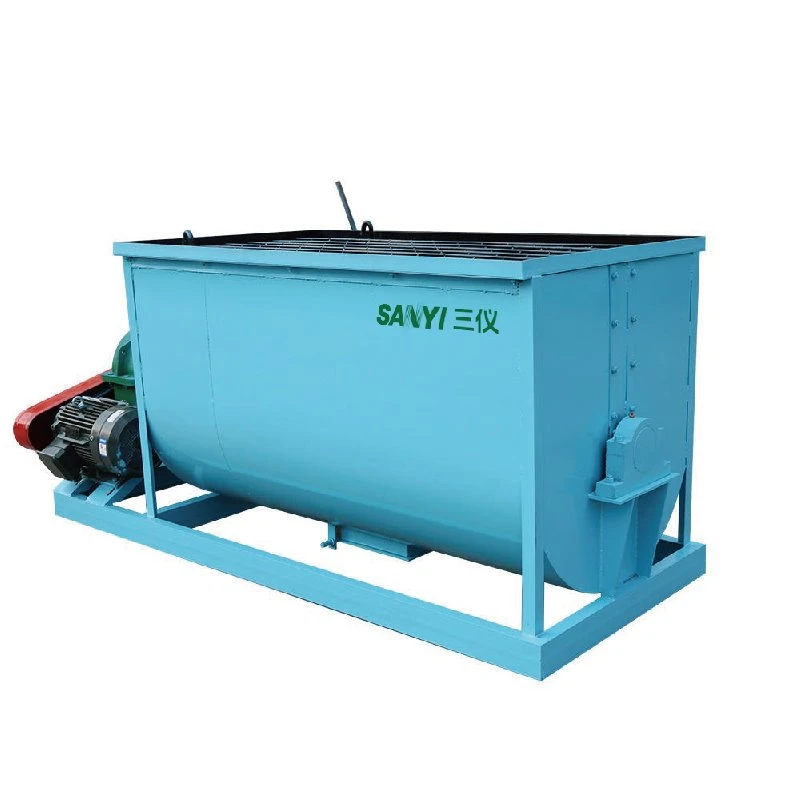

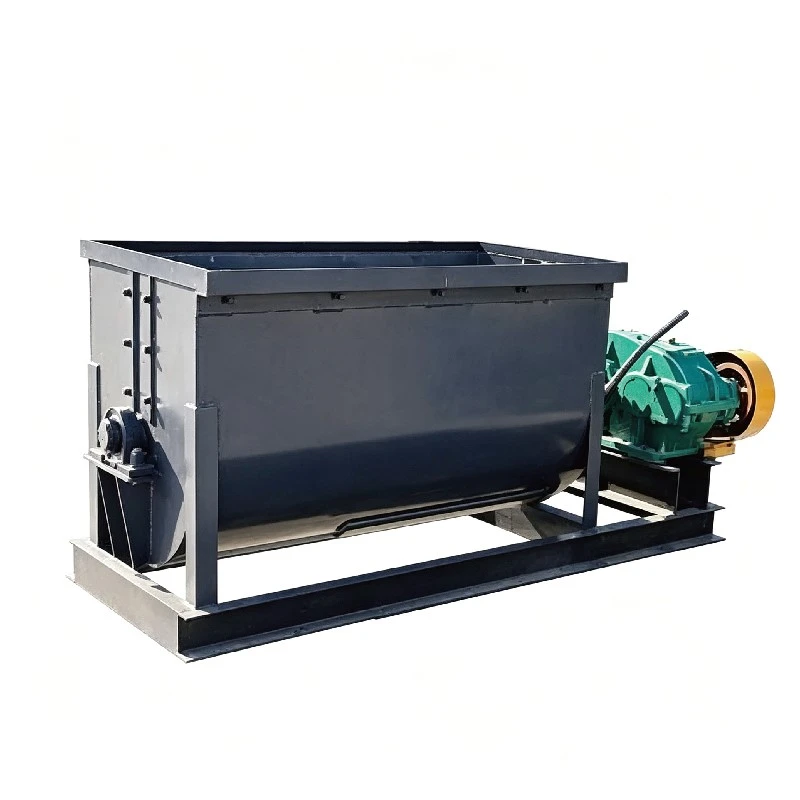

The twin-shaft paddle mixer, also known as weightless twin-shaft mixing equipment, is designed based on the twin-shaft reverse convection stirring principle, serving as high-efficiency homogenizing mixing equipment exclusive for organic and bio-organic fertilizer industries. Different from single-shaft ribbon machines, two parallel main shafts with staggered inclined paddles rotate reversely synchronously to form a weightless fluidized mixing zone inside the tank. It rapidly blends organic materials with huge differences in density, humidity and fiber content, integrating lump breaking, uniform mixing and moisture conditioning. It is the core model for fine mixing before fermentation and batching before granulation.
Core Accessories
W-shaped horizontal mixing tank
Integrally bent and formed with thickened steel plate reinforcement and anti-corrosion wear-resistant lining;
Twin-spindle mixing system
Two parallel transmission spindles, spirally staggered wear-resistant paddles, floating sealing shaft sleeves;
Heavy-duty transmission unit
National standard high-power motor, planetary gear reducer, elastic coupling for shock absorption;
Liquid spraying system
Multi-channel atomizing nozzles to evenly spray fermentation bacterial liquid and moisture-adjusting clean water;
Full-opening bottom discharge gate
Pneumatic fast discharging with material residual rate lower than 0.5% inside the tank;
Variable frequency intelligent control cabinet
Adjustable rotating speed, customizable mixing duration, dual protection against overload and phase loss.
Process Advantages
- Weightless fluidized mixing process: Reverse rotation of twin shafts makes materials suspend in instantaneous weightlessness, realizing simultaneous three-dimensional convection and shear diffusion. Each batch mixing finishes within 3–5 minutes with far higher uniformity than ordinary mixers, avoiding local enrichment or shortage of strains;
- Heavy wear-resistant high-load process: Paddles are forged of 65Mn high-manganese steel with surface quenching treatment, capable of long-term continuous processing of high-fiber straw and viscous manure without deformation or abrasion, extending service life by 4 times;
- Low-residue clean production process: W-shaped tank matched with wall-scraping paddles eliminates all mixing dead corners. No massive manual cleaning is needed when switching materials, preventing cross-contamination between batches;
- Gentle low-loss stirring process: Paddles provide sufficient mixing with mild force without over-crushing straw fibers, retaining material pore structure to guarantee air permeability and oxygen supply during composting;
- Modular assembly process: The whole machine is split into modules for easy transportation and installation, which can be flexibly connected to automatic feeding, fermentation and granulation full production lines to adapt to continuous assembly line operation.
Application Scope
Fine batching for bio-organic fertilizer plants, deep conditioning of livestock manure, mixed processing of straw and bacterial residue, mixing of decomposed organic fertilizer before granulation, nutrient soil substrate blending, garden organic waste treatment, suitable for full-size organic fertilizer production lines from small to large.
