Shandong Heze Sanyi Biological Engineering Co., Ltd. is one of the leading manufacturers and suppliers of integrated rendering and drying machine in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to buy durable integrated rendering and drying machine from our factory. Customized orders are welcome.
Product Overview

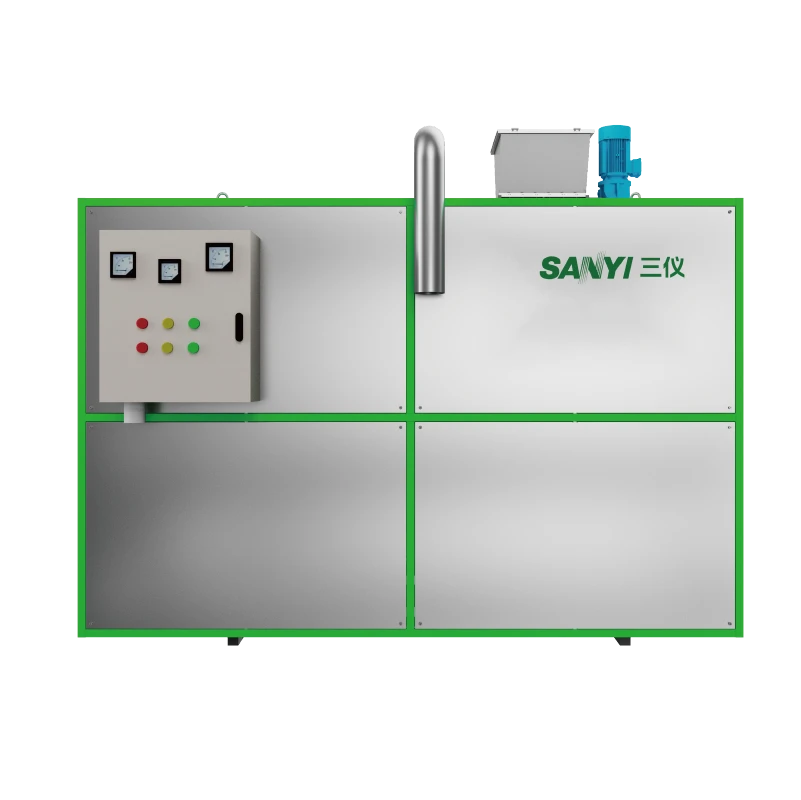

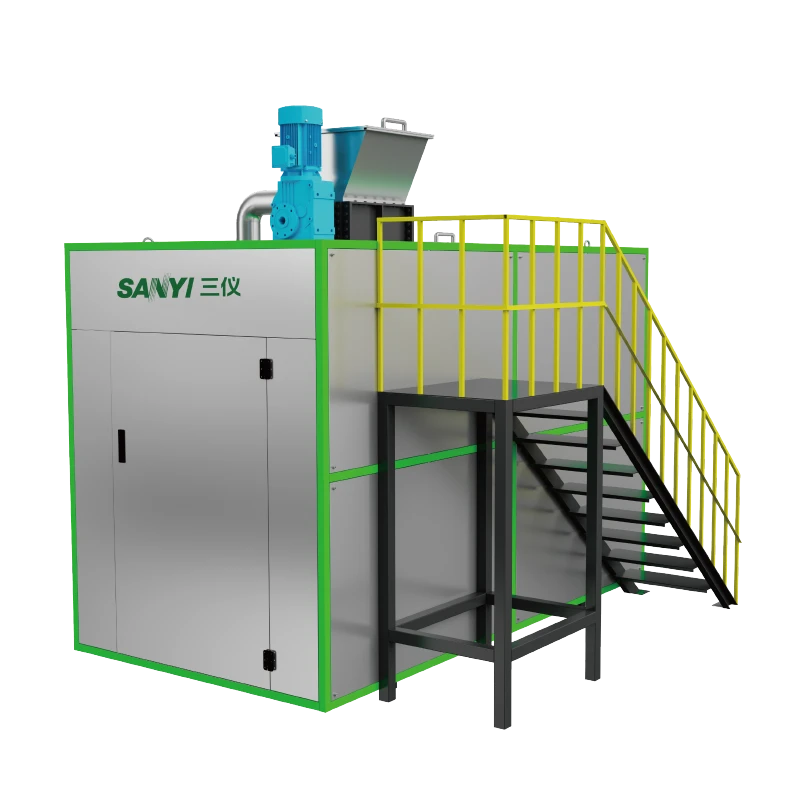

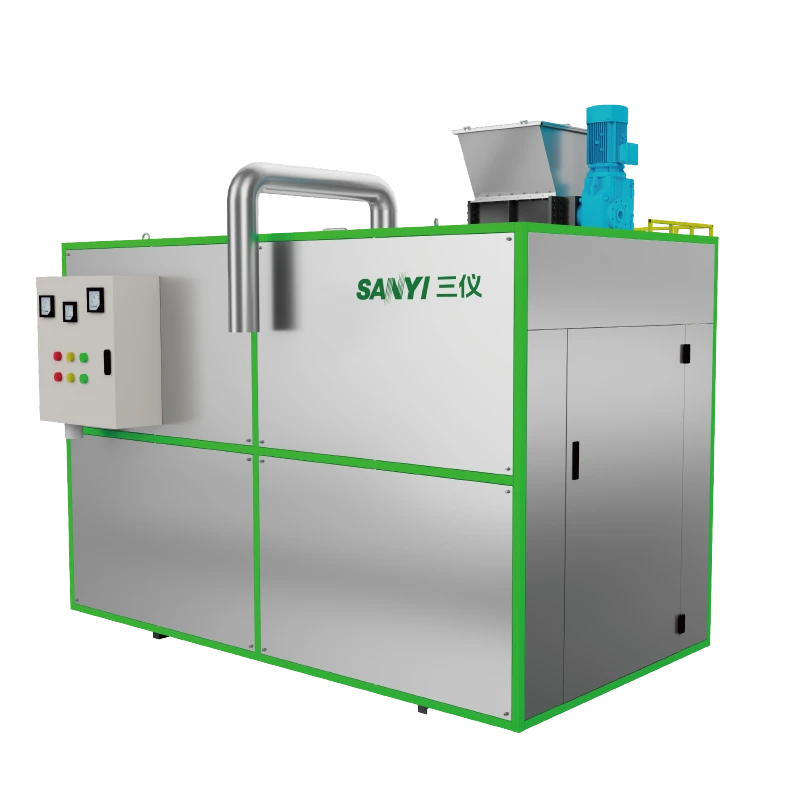

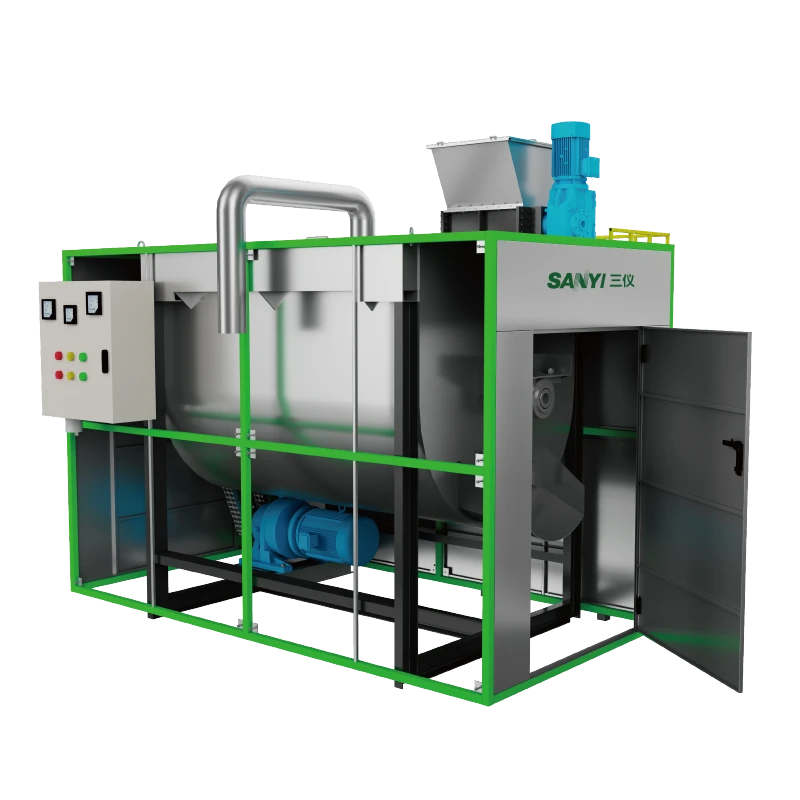

The rendering & drying integrated machine is an integrated core harmless disposal main unit integrating two core procedures: high-temperature rendering sterilization and negative pressure vacuum drying. It serves as the core equipment of dead poultry waste disposal system. Abandoning split design of rendering and drying in traditional equipment, it integrates two process units inside a single sealed cavity, simplifying pipelines and floor space of the whole disposal system. Suitable for dead carcasses and slaughter scraps of chickens, ducks, geese and all kinds of poultry, it relies on dual technologies of 130℃ high-temperature sterilization and ≤-0.06MPa negative pressure drying to complete pathogen inactivation and material dehydration & volume reduction in one go. High-nutrient meat and bone meal is produced after treatment, delivering dual benefits of environmental governance and resource regeneration. It can be matched with front shredding, rear waste gas treatment and automatic packing accessories to form a complete disposal production line.
Supporting Auxiliary Equipment & Accessories
Front shredding auxiliary machine
Independent sealed shredding equipment for raw material pretreatment, block materials are automatically conveyed into the integrated main machine bin;
01
PLC intelligent temperature control electric cabinet
Independent control system to precisely adjust heating temperature, stirring speed, negative pressure value and drying duration;
02
Vortex vacuum negative pressure unit
Independent external vacuum pump continuously extracts air inside the bin to form stable negative pressure drying environment;
03
Waste gas purification auxiliary machine
Receives volatile tail gas discharged from main machine, conducts multi-stage deodorization and filtration before standard discharge;
04
Automatic discharging ton bag packing accessories
Automatic material discharge after drying to realize dust-free sealed collection of finished products.
05
Process & Core Advantages
Process Flow
Raw material shredding pretreatment → Sealed conveying to rendering & drying integrated bin → 130℃ high-temperature stirring rendering sterilization → Continuous negative pressure vacuum drying for 4-6 hours → External discharge and purification of tail gas → Sealed collection and packaging of meat and bone meal finished products.
Advantages
1.High integration of dual processes: Rendering and drying are completed synchronously in one bin, eliminating intermediate transportation and storage links and reducing risks of secondary material pollution;
2.Integrated sealed negative pressure cavity forming: Full negative pressure operation in single cavity without intermediate open procedures, all odor and water vapor are collected and treated centrally;
3.Precise segmented temperature control system: Stable 130℃ in sterilization stage and adjustable 100-140℃ in drying stage, balancing sterilization effect and nutrient retention;
4.Energy-saving consumption reduction design: Negative pressure environment cuts heat required for water evaporation, delivering lower energy consumption than split equipment under equal processing capacity;
5.Strong expansion adaptability: Can be used as a single machine independently, or matched with shredding and waste gas treatment equipment to form complete production lines, suitable for breeding entities of different scales.
